Handheld laser welding source Bodor Welder 1500 Pro. Device that will bring your project to the higher level.
Thanks to durability and compactness the Bodor Welder 1500 Pro is ideal companion for widest range of welding activities. From welding the prototypes and fixtures, through workshop works even to large-capacity, industrial and serial production in all fields of industry. Even in complex tasks provides fast and efficient welding with expected quality of the performed welds without increased demands on the operator's expertise compared to traditional welding methods.
Portable design, integrated and compact construction
The Bodor Welder 1500 Pro laser welding source is equipped with self-cooling technology which completely eliminates the need to replace or refill water or other coolant types. So it does not contain a built-in water tank or cooling fans. This made possible to achieve very compact dimensions compared to other devices of the same type, the device taking up only 0.24 m2 of space on the workplace.
This laser source is designed to help welders in complex applications in variety of conditions to achieve good and easy portability at workplace. It also comes with set of Bodor welding nozzles.
Top performance even in extreme conditions and welding efficiency
Achieves excellent welding quality, reliability and stable performance tested in extreme temperature conditions from -20°C up to 60°C at relative humidity up to 90% for more than working 10 000 hours.
Provides consistent welding quality across variety of welding applications and high-speed welding of generally known metal materials resulting in smooth welds without deformations. Regardless of the external environment the high-efficiency resonator can generate laser output continuously 24/7 without interruption. Compared to traditional welding technologies laser welding generally achieves up to 4x higher efficiency which isa key to good and expected productivity in the manufacturing process.
Self-cooling system with constant temperature circulation technology Central rotary controler
Consistent performance thanks to self-cooling system
Bodor Welder 1500 Pro is equipped with innovative and patented self-cooling system that completely eliminates the need to replace or refill water or other coolant types. This significantly simplifies maintenance of the device and reduces operating costs.
This is a constant temperature circulation technology. The recyclable refrigerant absorbs excess heat in the system and dissipates it through the radiator. The system ability to withstand temperature fluctuations and high humidity is confirmed by laboratory tests conducted for 10 000 working hours. This system guarantees stable and continuous operation in extreme weather conditions as well in challenging welding applications.
Intuitive and easy to use
Easy operation using central rotary controler with display unit and the possibility of selecting intelligent functions. All parameter settings such as power, weld width, frequency and others, as well as the selection of the welding process are adjusted with one single smart rotary controller easily accessible from above.
The controller also brings the option of selecting programs from pre-set database of welding processes and parameters. The database contains welding parameters for steel from 1.0mm to 4.0mm for performing both surface and fillet welds. The database acts as a guide for beginners and allows welders with different levels of knowledge to weld without any obstacles. There is also the option of manually or automatically saving welding parameters as own welding program in the system memory for future use.
If need further information, technical consultation or if you are interested in price offer and presentation of the device do not hesitate to contact us, we are fully at your disposal!

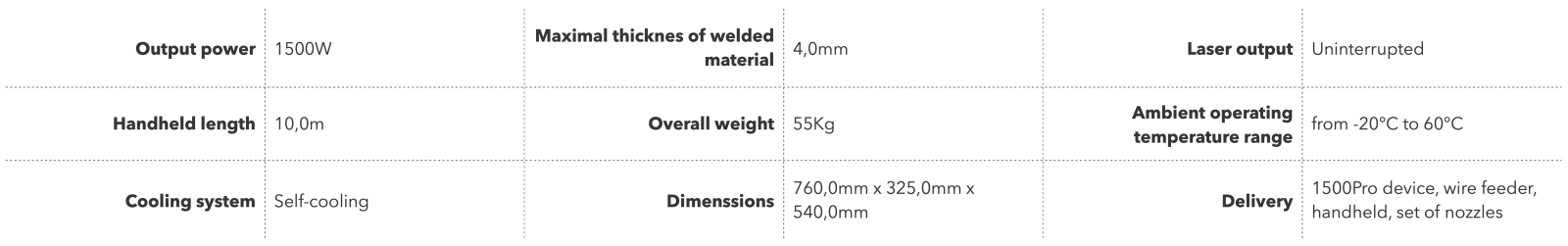

BodorWelder 1500 Pro - main benefits recap
Stable performance. Maintaining performance in extreme conditions the source generates light laser output at temperatures from -20°C to 60°C at relative humidity up to 90%.
Excellent welding quality. Adjustable power up to 1500W, processing in accordance with strict industry standards.
User-friendly and intuitive control. All settings are made with a single smart controller easily accessible from above.
Database of programs and welding parameters. Regardless of skill level it allows welders to weld without obstacles.
Portability, compact design. Lightweight and compact source of easy assembly offers maximum flexibility to increase productivity in daily work.
Self-cooling system. Eliminates the need to replace or add water or other coolant which significantly simplifies maintenance and reduces operating costs.
